Product Details

CE-30/HQ-1

Room temperature curable. Coating thickness can be controlled by using dilluent.

Product Category by Use by Function
Product Category
  • Coating Resin for Thermistors Terminal Seal for Thermal Fuse
by Use
  • Sensors, Relays
  • Thermal Fuses
by Function
  • -

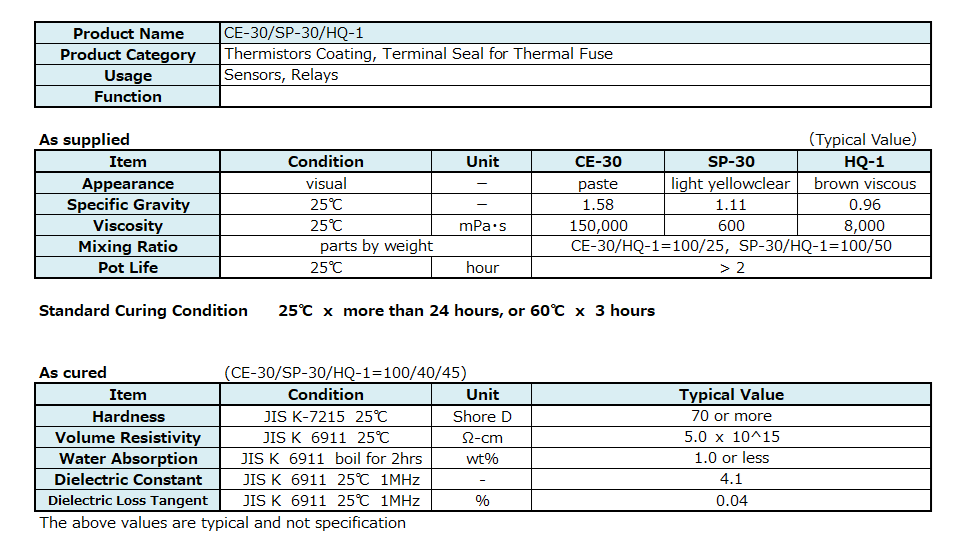

Specification

    Features

  • Polyamidoamine curing agent
  • Can be cured at room temperature
  • Coating film adjustment is possible by using a diluent
  • Good adhesion and bonding properties

    by Use

  • Various sensors, relays, thermal fuses

Types of packaging

CE-30 : 1kg, 5kg
HQ-1 : 0.5kg, 2.5kg

Instructions for Use

  1. The ingredients may separate or the filler may settle. Stir well before use.
  2. Calculate the required main and hardening agents based on the mixing ratios listed in the product information.
  3. Measure the main agent and hardener into a polyethylene cup.
  4. Mix the main agent and hardener well. Use a stirrer or spatula for mixing.
  5. When stirring, make sure to agitate the corners and bottom of the cup.
  6. Defoam the mixed liquid immediately after stirring. Insufficient defoaming may cause air bubbles.
  7. Pour or apply the mixture.
  8. Curing should be done under the specified curing conditions.
  9. Do not cure a large amount at a time. Failure to do so may result in smoking or ignition.
