Product Details

ME-512-1B/HV-512

Low stress, for general LED and IR LED

Product Category by Use by Function
Product Category
  • Casting Resin for LED
by Use
  • LED
by Function
  • Low Stress

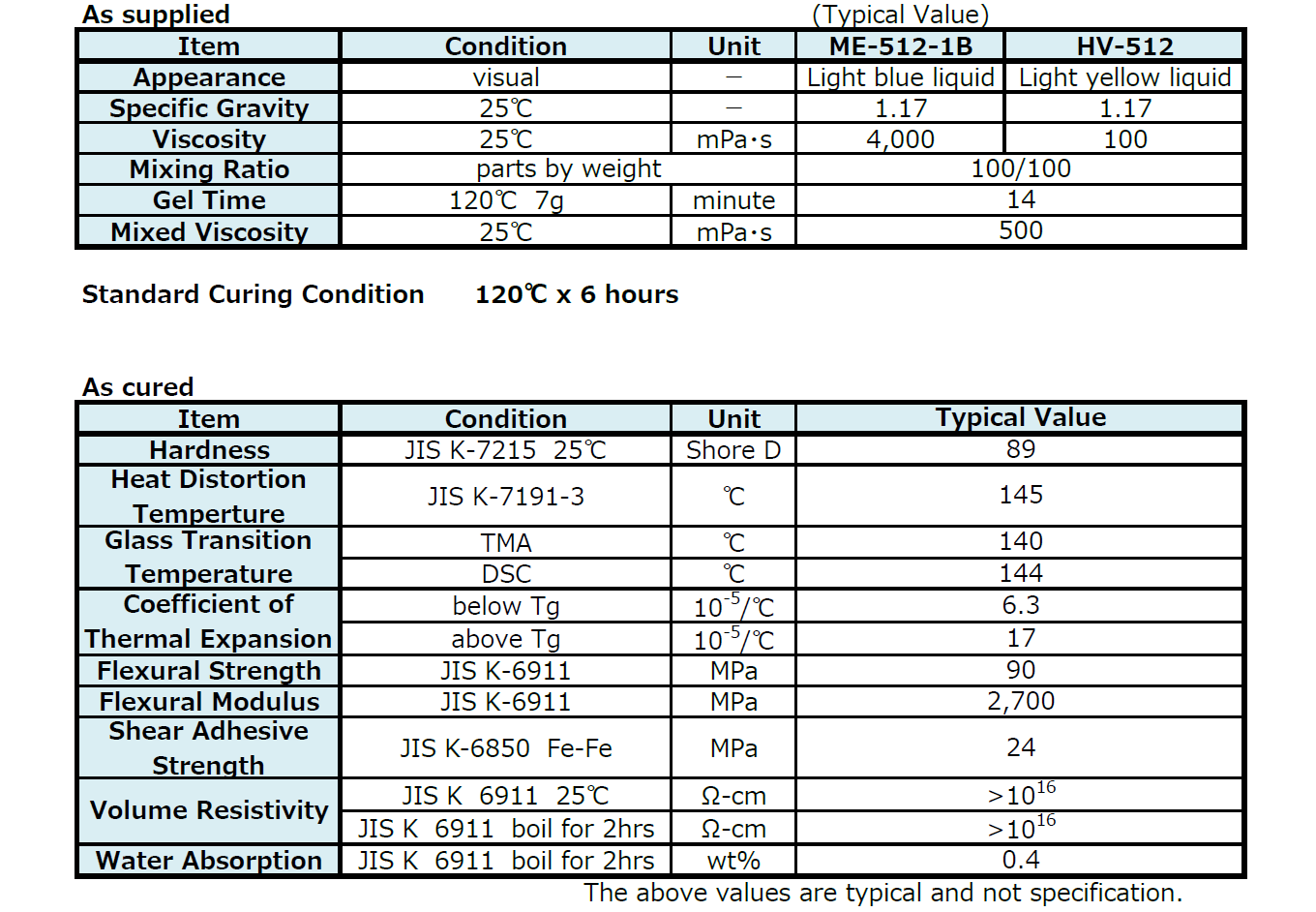

Specification

    Features

  • Two-component heat-curing epoxy resin
  • Acid anhydride curing agent
  • Non-filler
  • Suitable for LED chips that are sensitive to stress
  • Low viscosity and good workability
  • High Tg and good heat resistance properties

    by Use

  • Encapsulants for LEDs (bullet-shaped LEDs)

Types of packaging

ME-512-1B : 5kg
HV-512 : 5kg

Instructions for Use

  1. The ingredients may separate or the filler may settle. Stir well before use.
  2. Calculate the required main and hardening agents based on the mixing ratios listed in the product information.
  3. Measure the main agent and hardener into a polyethylene cup.
  4. Mix the main agent and hardener well. Use a stirrer or spatula for mixing.
  5. When stirring, make sure to agitate the corners and bottom of the cup.
  6. Defoam the mixed liquid immediately after stirring. Insufficient defoaming may cause air bubbles.
  7. Pour or apply the mixture.
  8. Curing should be done under the specified curing conditions.
  9. Do not cure a large amount at a time. Failure to do so may result in smoking or ignition.
