Product Details

XM-2109/XY-2110

UL-94 V-0 recognized, Flexible

Product Category by Use by Function
Product Category
  • Resin for Car Electro Devices & Sensors
by Use
  • General Modules
by Function
  • Flexible
  • Low Stress
  • Flame Resistant (UL-94 V-0)

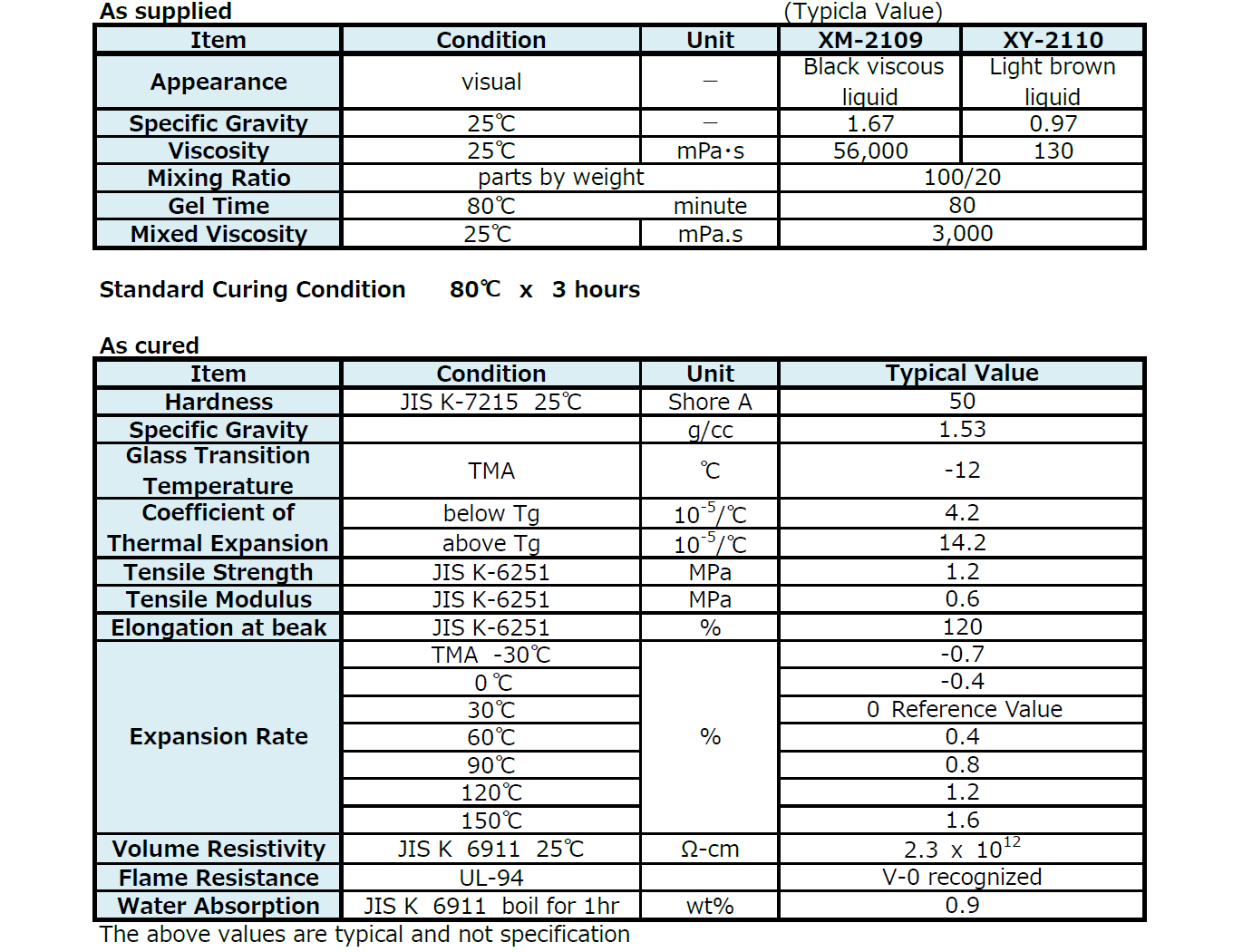

Specification

    Features

  • Two-component heat-curing epoxy resins
  • Amine-based curing agent
  • Flexible
  • Medium temperature curing type
  • Low stress
  • Flame retardant (UL-94 V-0 certified)

    by Use

  • Potting for semiconduntor modules
  • Automotive electrical components
  • Sensors, relays

Types of packaging

XM-2109 : 5kg
XY-2110 : 1kg

Instructions for Use

  1. The ingredients may separate or the filler may settle. Stir well before use.
  2. Calculate the required main and hardening agents based on the mixing ratios listed in the product information.
  3. Measure the main agent and hardener into a polyethylene cup.
  4. Mix the main agent and hardener well. Use a stirrer or spatula for mixing.
  5. When stirring, make sure to agitate the corners and bottom of the cup.
  6. Defoam the mixed liquid immediately after stirring. Insufficient defoaming may cause air bubbles.
  7. Pour or apply the mixture.
  8. Curing should be done under the specified curing conditions.
  9. Do not cure a large amount at a time. Failure to do so may result in smoking or ignition.
